Slide 21 of 44
Notes:

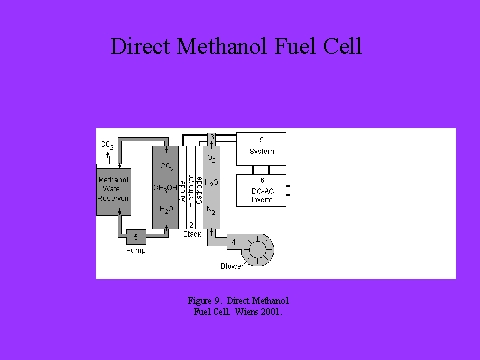

Direct Methanol Fuel Cell
- Inside the fuel cell, a catalyst-coated membrane separates a negatively charged chamber filled with a methanol/water solution, and a positively charged chamber filled with air.
- The membrane allows hydrogen ions form the methanol to pass through the negative to the positive side, creating an electric current
